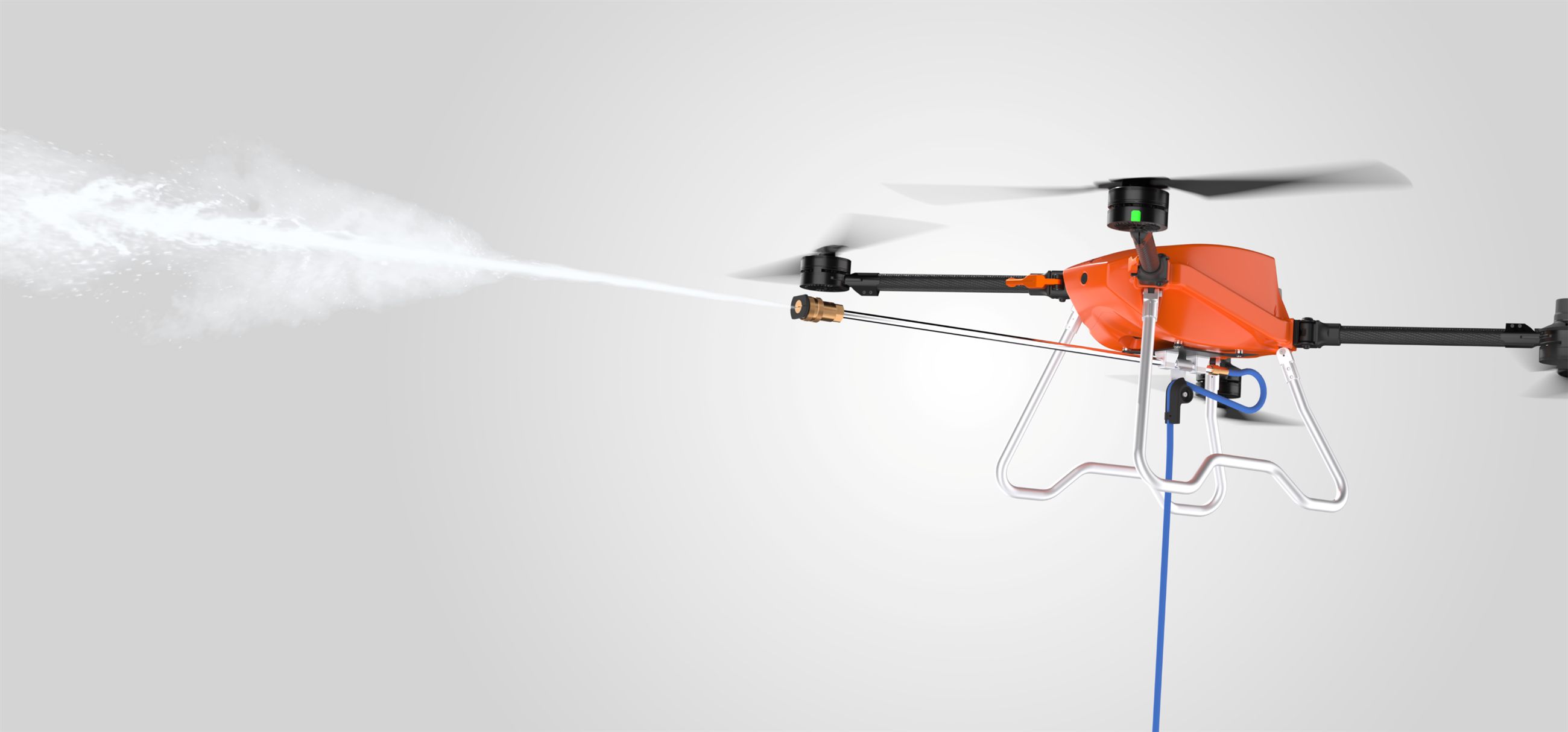

SPD25 · Pressure washing drone
Meet the SPD25.
Made for cleaning up high.
The tool you need for tough pressure washing jobs at height. It reaches surfaces 50 metres up, carries up to 13 kg and stays up to 50 minutes in the air, with no scaffolding, lifts or rope access.
- Pressure washing
- Heavy-lift payloads
- And more
Most drones look.
This one does the work.
Most drones are cameras with propellers. They inspect, film and report, and someone still has to go up and do the job. The SPD25 is built to do the job itself: it carries up to 13 kg, feeds a high-pressure line to its spray boom, and holds position to the centimetre while it works. Pressure washing today, other physical work tomorrow.
Full specification sheet available on request: contact us
Standard fittings.
Any nozzle you need.

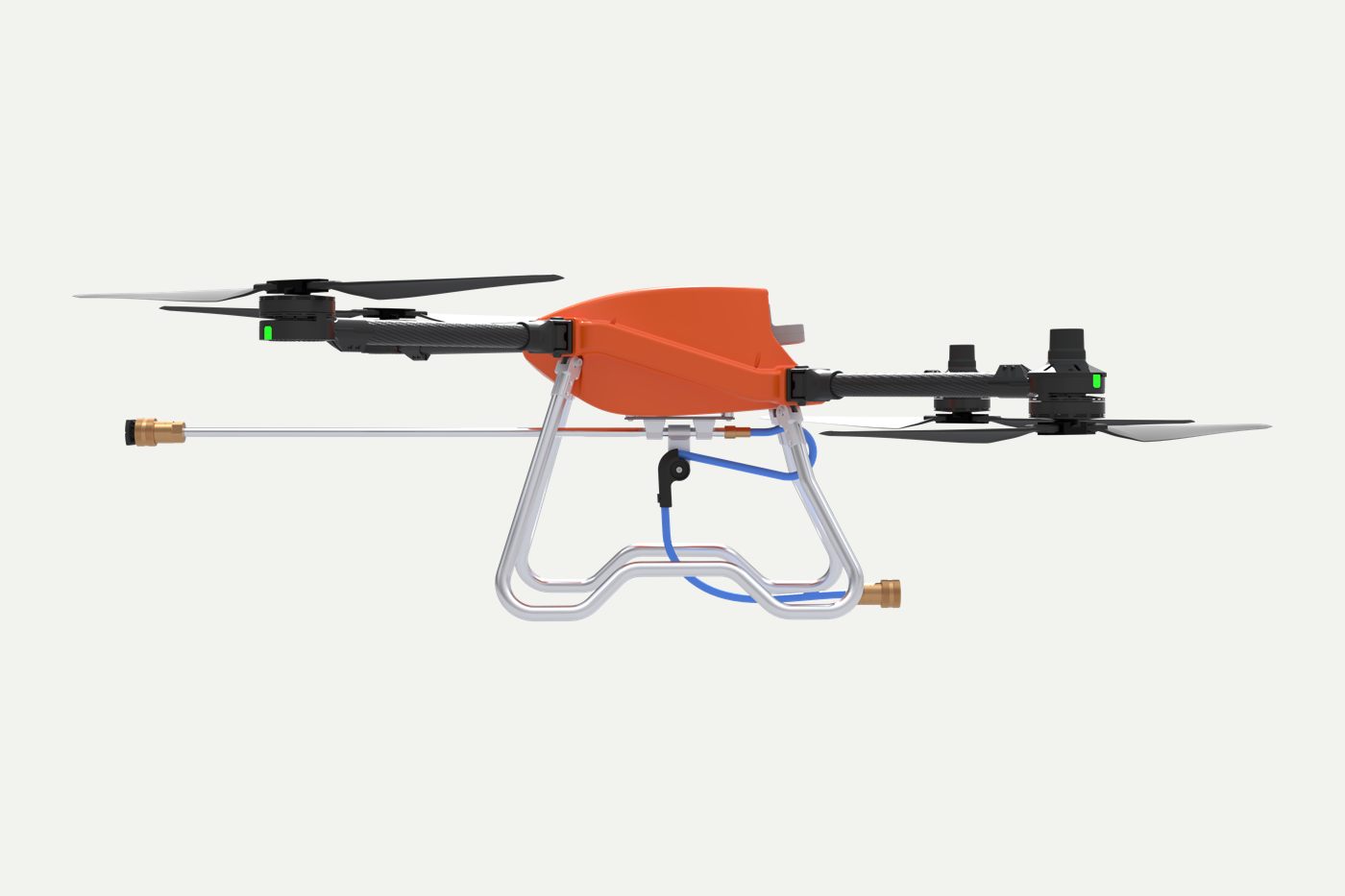

The spray boom uses standard pressure washing quick-connect fittings, so you can fit the nozzle that suits the surface and the job. Pressure clean surfaces up to 50 metres high.
No special pumps.
No special parts.
The SPD25 connects to standard high-pressure hose and works with the kind of pressure washer pumps your crew already uses. The ground equipment is standard, off-the-shelf pressure washing gear, not a specialist system.
Use a pump you already own, or buy one off the shelf. The SPD25 supports pumps up to 30 L/min and 3000 PSI. No proprietary pump required.
Hose and fittings are standard high-pressure parts, available from pressure washing suppliers. A lightweight hose is also available through ProxGrid.

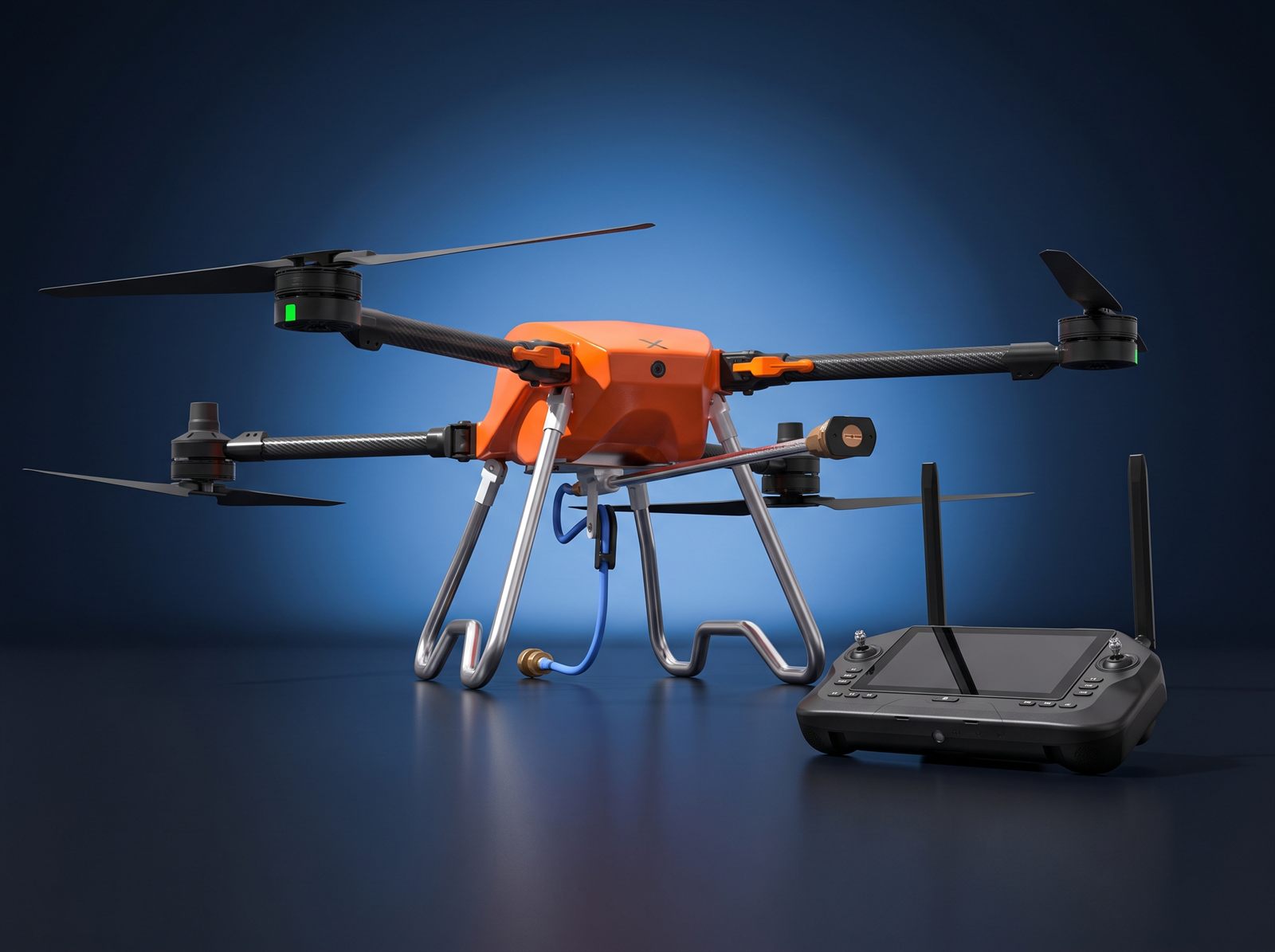

The hose clicks onto the airframe through a brass quick-connect fitting and feeds the spray boom.
- Max pump flow
- 30 L/min
- Max pump pressure
- 3000 PSI (207 bar)
- Hose
- Standard high-pressure
- Lightweight hose
- Available from ProxGrid
Bolt it on.
Plug it in.

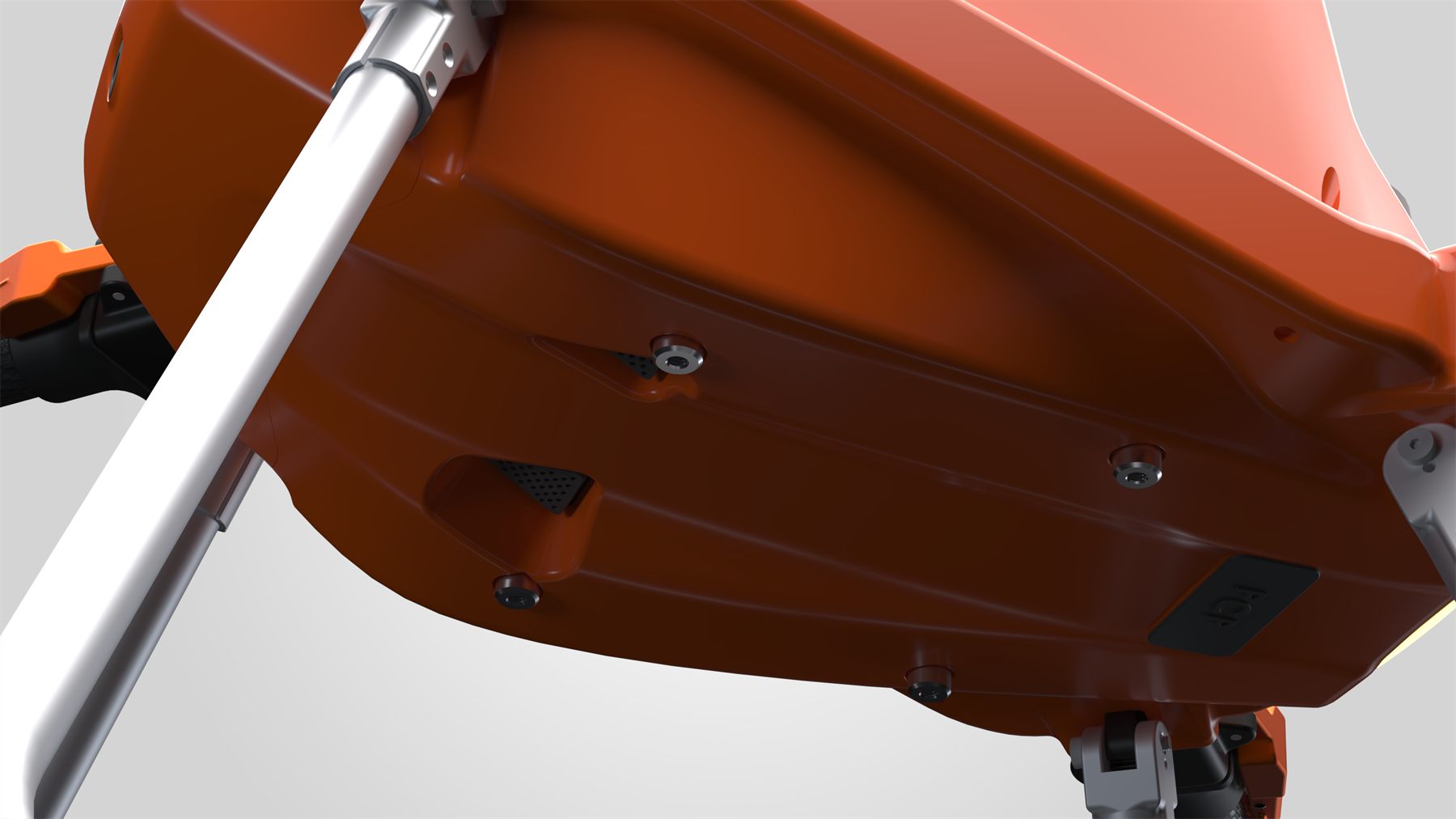

Every SPD25 has a standard mounting pattern and a Payload Connection Port (PCP) on its underside. Fit your own sensor, tool or actuator with four bolts and one connector, and power and control it from the drone.
* Mounting face to ground. Longer landing gear is available as an add-on for taller payloads.
Holds its position.
To the centimetre.
Dual high-precision RTK GNSS antennas give the SPD25 an accurate position and heading. In Australia, RTK corrections stream over the internet via NTRIP, so centimetre-level accuracy needs no base station on site.

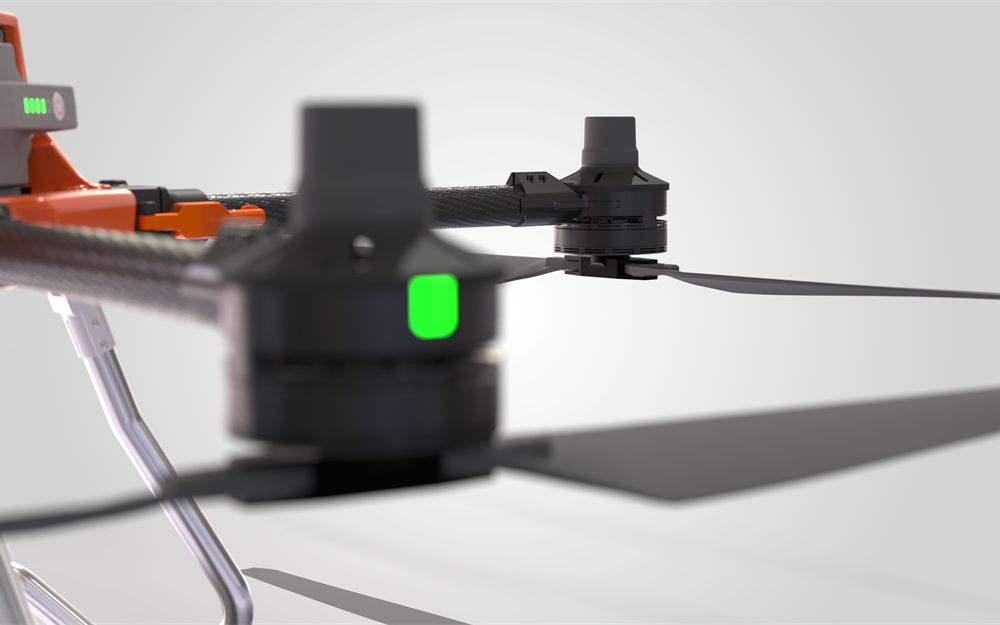

Two high-precision antennas give centimetre-level positioning and a GNSS-derived heading, so the SPD25 holds its line without depending on a compass near steel structures.
RTK corrections arrive over a mobile data connection using NTRIP. Centimetre accuracy on site, without setting up and surveying in a local base station.

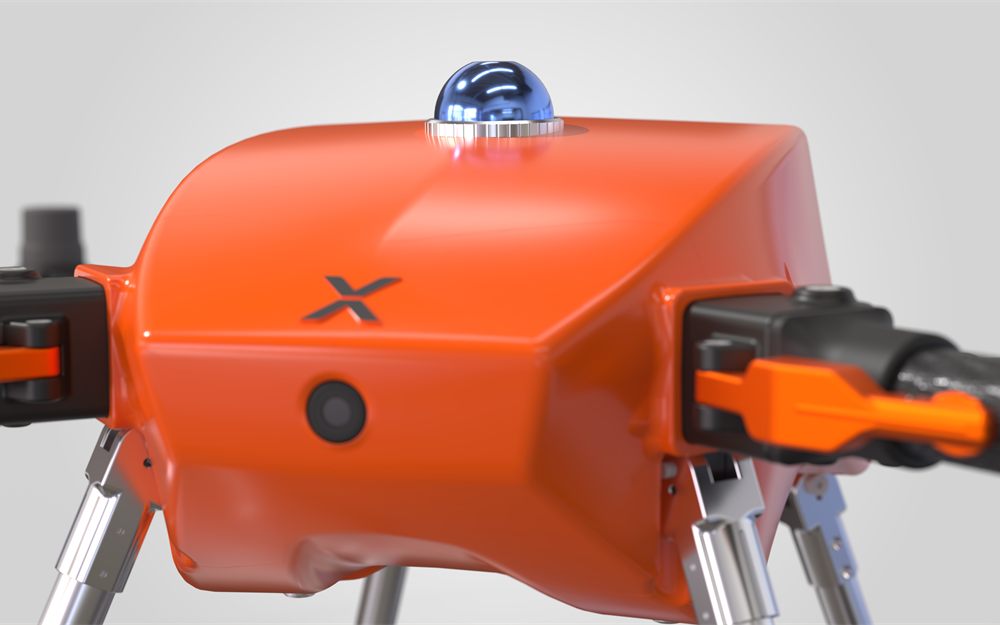

Optional 360° LiDAR and radar for obstacle avoidance and spray distancing, helping keep the nozzle at a set distance from the surface.
Made for long days
on real sites.
Every part of the SPD25 is chosen to keep it flying, cleaning and earning, not sitting in the workshop.

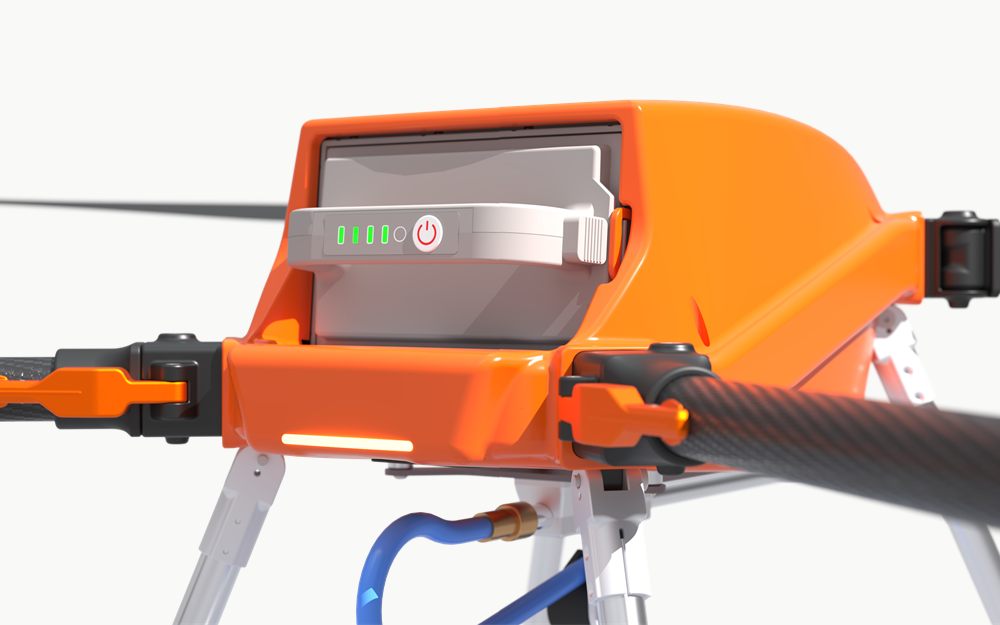

An industrial high-capacity smart battery gives up to 50 minutes of flight time with no payload. It slots into a rear bay with the charge level on show, so swapping between flights is quick.

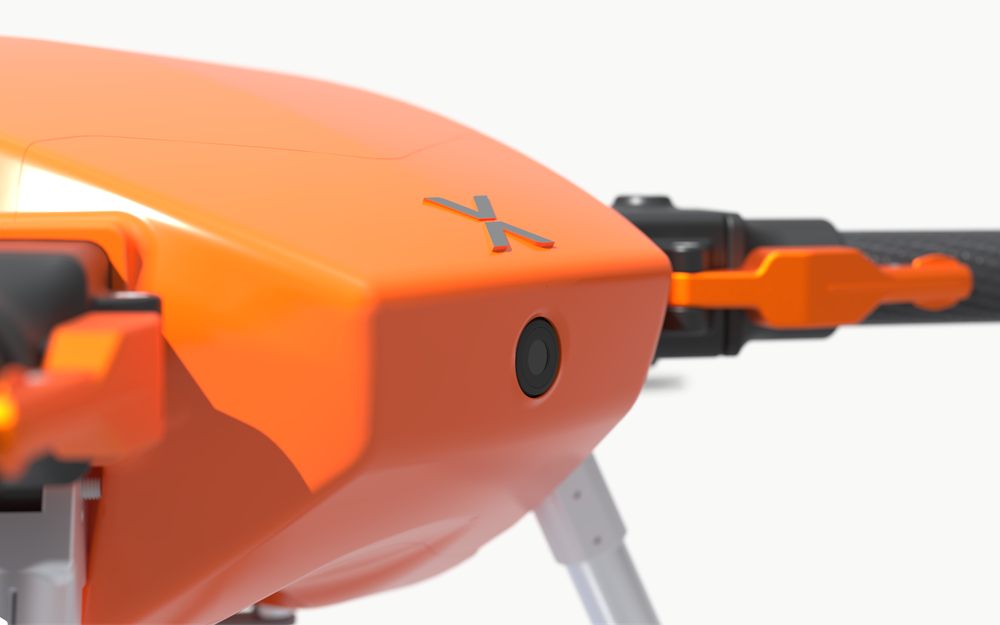

A built-in HD camera streams a low-latency feed to the controller, so the pilot can aim the spray precisely and confirm the surface is clean before moving on.

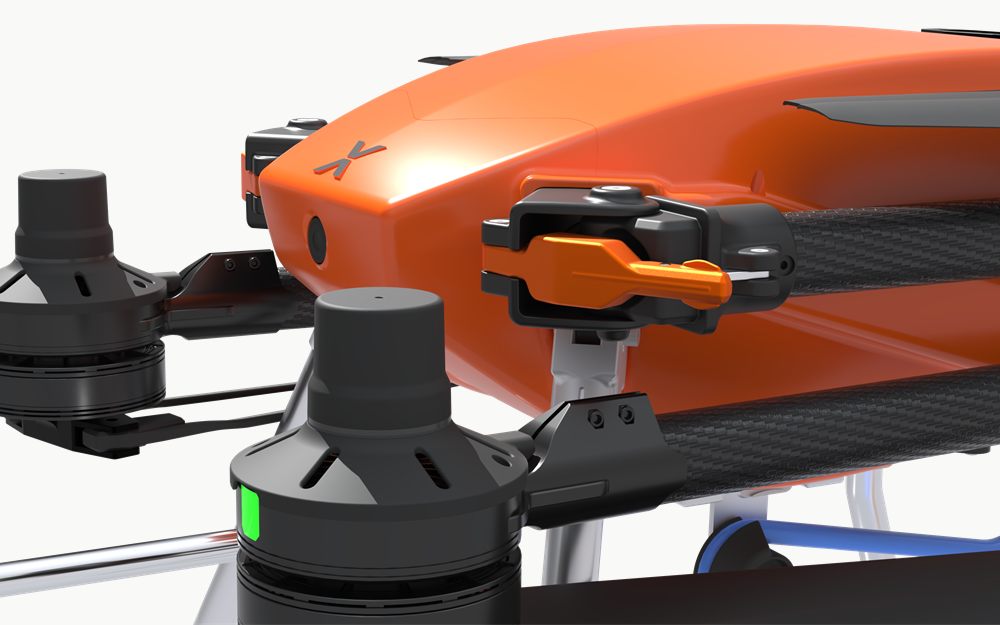

Each carbon fibre arm locks out with a single quick-release latch. Flip the latches and the arms fold back against the body, ready for the vehicle.
Full size in the air.
Compact in the vehicle.

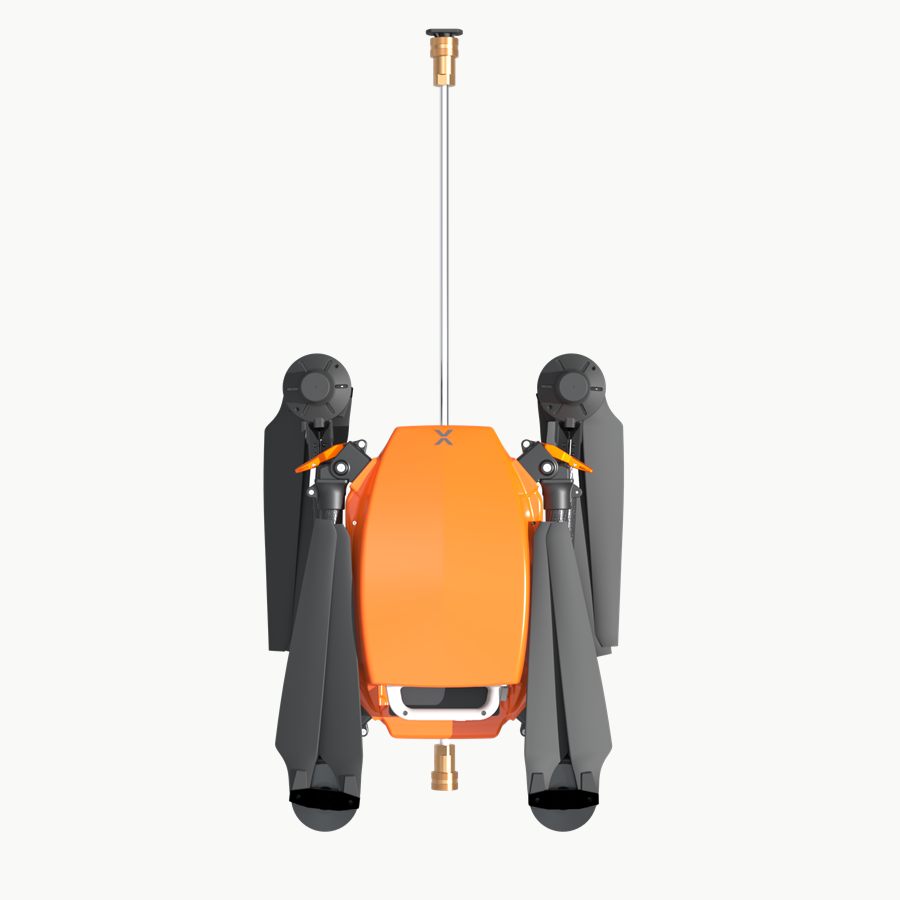

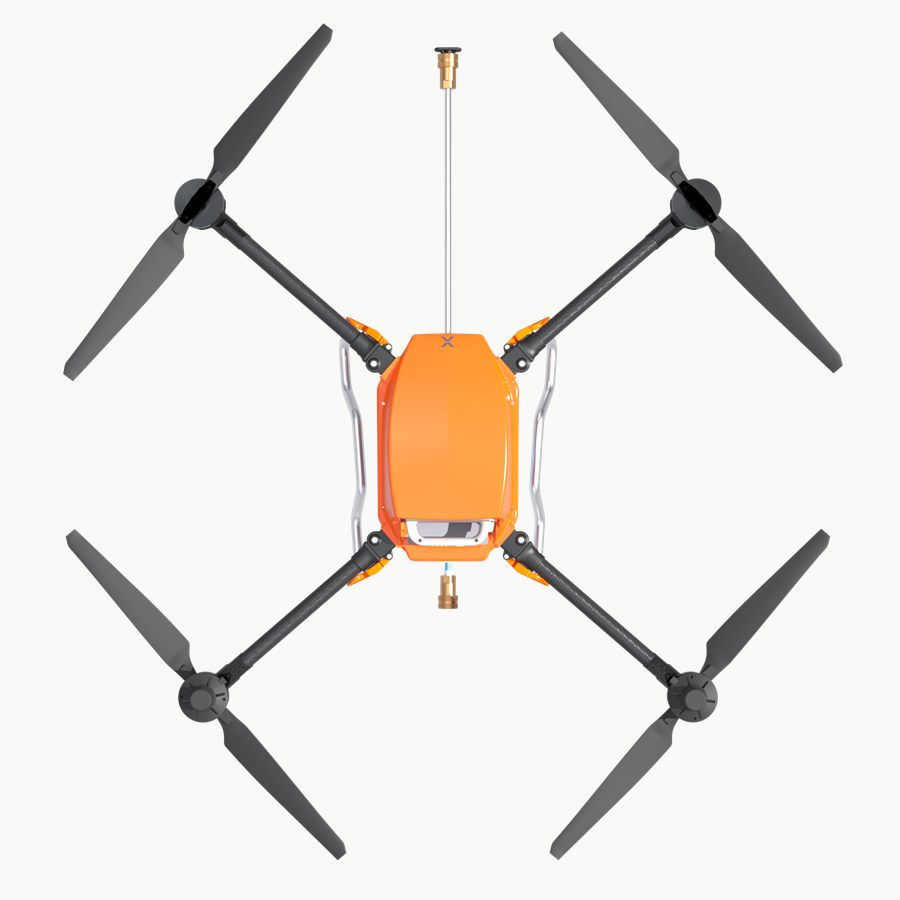

Fold the arms and propellers and the SPD25 goes from 1670 mm across to 480 × 680 mm, about an eighth of its flying footprint. It rides in a standard work vehicle and comes out ready to fly.
Pressure washing first.
Ready for whatever's next.
The SPD25 ships with its spray boom, and its 13 kg lift capacity means the same machine can carry other payloads when the job calls for it.
Pressure clean surfaces up to 50 metres high: building facades, roofs, tanks, silos, and industrial structures. The spray boom attachment comes with every SPD25.
See cleaning applicationsSensor and imaging package for condition assessment, defect identification, and pre/post-operation documentation.
Detailed specs to follow
Need to lift something else? With up to 13 kg of payload capacity, the SPD25 can carry custom equipment on its standard M4 mounts and PCP port. We'll work through the integration with you.
See the payload interfaceThe full
numbers.
Values marked TBC are being finalised through the current test programme and will be published on release. For pre-release figures under NDA, get in touch.
We're setting up pilots with cleaning contractors and facility managers now. Tell us about your work and we'll talk you through how the SPD25 fits in.
